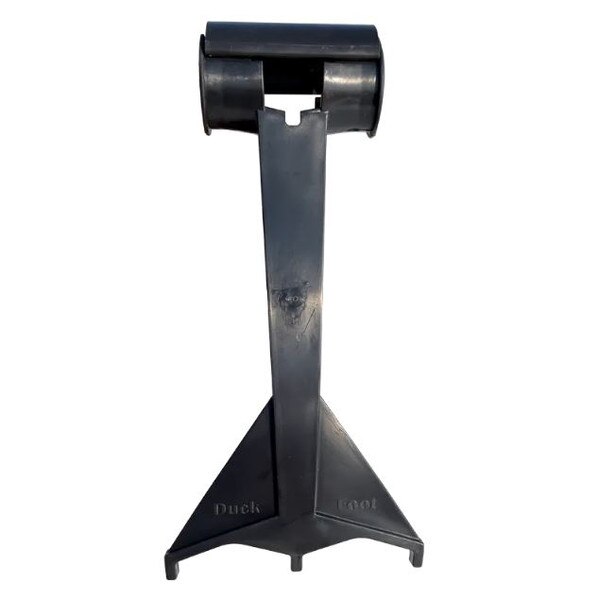

Duck Foot ® Paddle Tyne
This kit is sold as a Pack of 10 = (10 x Duck Foot ® Paddle Tyne and 10 x Clip)
Quantities Recommended: Kits available for 40FT/45FT
25FT Front - 115
30FT front - 140
35FT front - 165
40FT front - 190 (Purchase Kit DF1MD-KIT-40)
45FT front - 215 (Purchase Kit DF1MD-KIT-45)
50FT front - 240
Quantities are based on spacing a Duck Foot ® over every 2nd tyne MacDon - Refer fitment section for more information
Feature and Benefits:

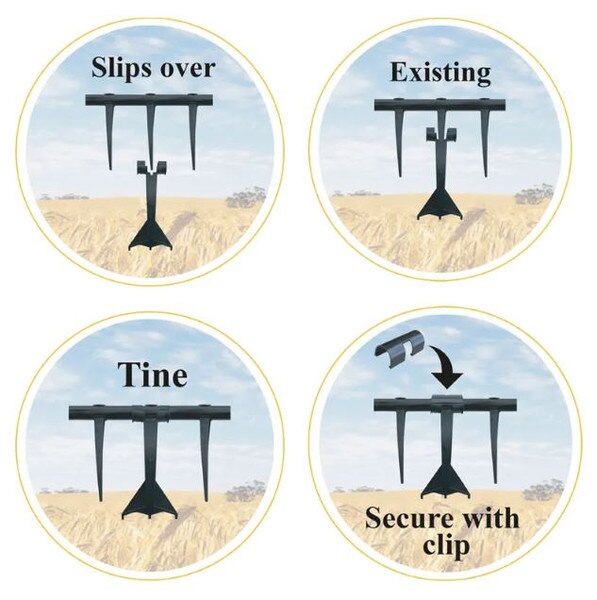

Duck Foot ® paddle tynes slide over the factory tynes and clip onto the reel with a unique clip system.
Fast and easy to install and remove.

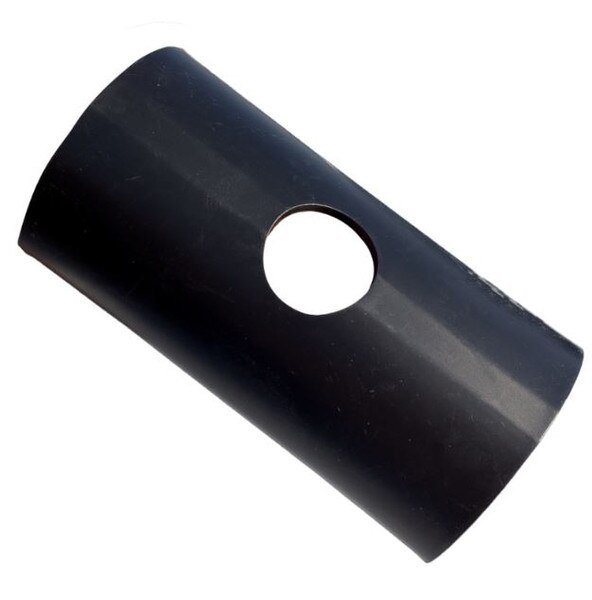

Unique clip system secures the slip-over paddle tyne to the reel.
Placed over every second tine, off-setting on each consecutive batt.
Proven data to reduce header loss in Australian conditions.
Clears the cutter bar and feeds the crop more evenly for better threshing.
Suitable for Crops: Lentils, soybeans, chickpeas, all cereals, straight cut canola, sorghum, edible beans, flax, lupins, hay, peas and rice.
View fitment section for more details:
Suits 5 Batt reels
MacDon: FD & D-series – 6” tyne spacing
MacDon: FD1 & FD2 – 4” tyne spacing (Install Duck Foot ® on every 3rd tyne)
Recommended Reel pitch setting: Duck Foot™ recommends front reel tyne pitch to be set to a less aggressive setting. (Position 1 or Position 2 on MacDon)
Installation Instructions: Visit Duck Foot Parts Inc YouTube Channel (Pro Tip)
