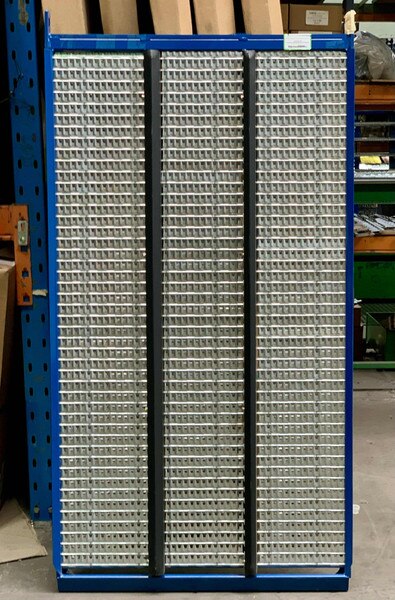

Bottom Sieve Chaffer (Not Including linkages)

Set of 2 Required

Australian Made by Harvestaire

1 1/8" Wire spacing

56.5" (1433mm) Length

30.8" (784mm) Width
Features:
Harvestaire standard louvre top sieves perform the same as originals, but have nylon bushes so they don’t wear out.

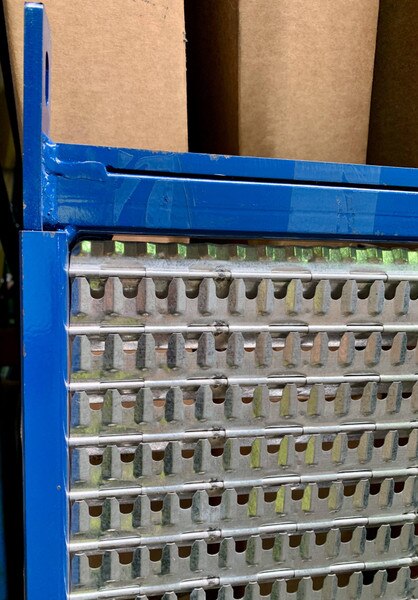

Harvestaire AirFoil bottom sieves are virtually impossible to overload as the louvres do not deflect or close up under a heavy stream of grain as is frequently the case with traditional bottom sieves, particularly when they are worn. This makes normal sieves very difficult to adjust. It’s common to find the normal sieve either putting too much good grain in the repeats or letting too much rubbish in the sample

Benefits:

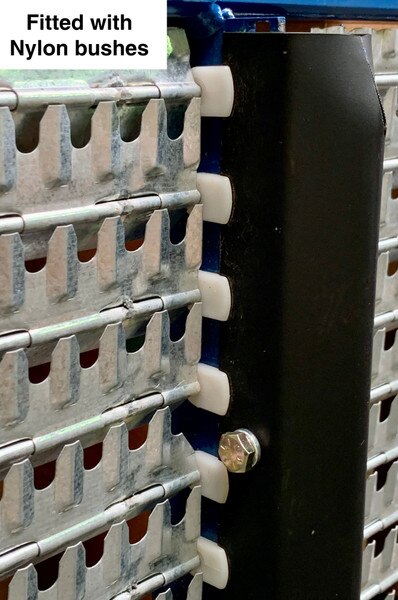

Nylon anti-wear bushes on all wires increase the life of the sieve by reducing friction, wear and breakage.

Wires and louvres can be replaced.

Strong, fully galvanised louvre design prevents distortion caused by the weight of the grain.
