Duck Foot ® Paddle Tyne Kit - 45FT Front

This kit is sold as a Pack of 215 to suit a 45FT front

Kit includes:

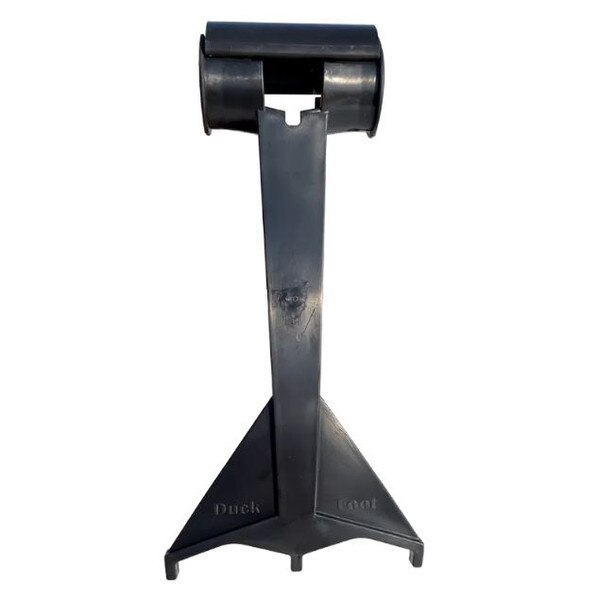

215 x Duck Foot ® Paddle Tyne

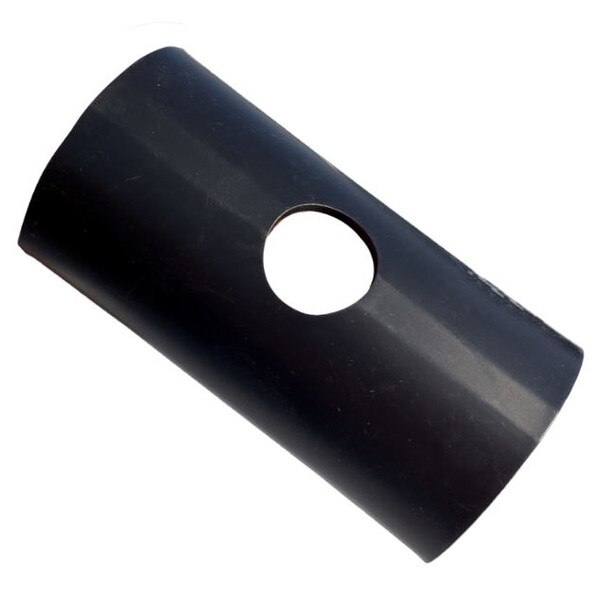

215 x Clip

Quantities are based on spacing a Duck Foot ® over every 2nd tyne MacDon - Refer fitment section for more information

Feature and Benefits:

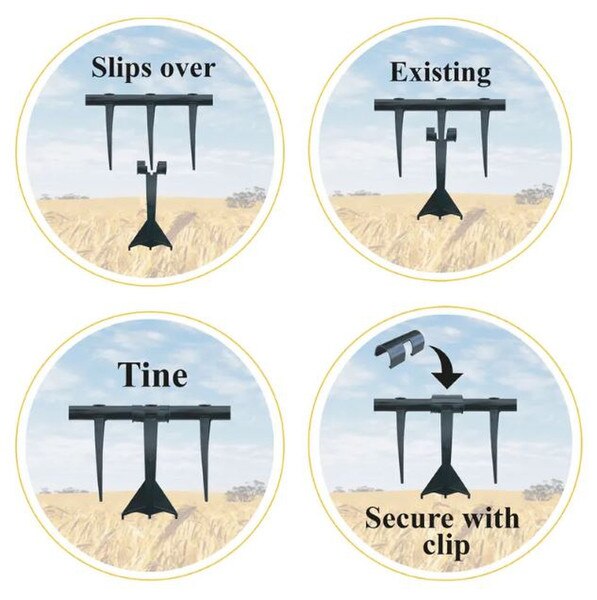

Duck Foot ® paddle tynes slide over the factory tynes and clip onto the reel with a unique clip system.

Fast and easy to install and remove.

Unique clip system secures the slip-over paddle tyne to the reel.

Placed over every second tine, off-setting on each consecutive batt.

Proven data to reduce header loss in Australian conditions.

Clears the cutter bar and feeds the crop more evenly for better threshing.

Suitable for Crops: Lentils, soybeans, chickpeas, all cereals, straight cut canola, sorghum, edible beans, flax, lupins, hay, peas and rice.

View fitment section for more details:

Suits 5 Batt reels

MacDon: FD & D-series – 6” tyne spacing
MacDon: FD1 & FD2 – 4” tyne spacing (Install Duck Foot ® on every 3rd tyne)

Recommended Reel pitch setting: Duck Foot® recommends front reel tyne pitch to be set to a less aggressive setting. (Position 1 or Position 2 on MacDon)

Installation Instructions:Visit Duck Foot Parts Inc YouTube Channel (Pro Tip)
