Made in Australia

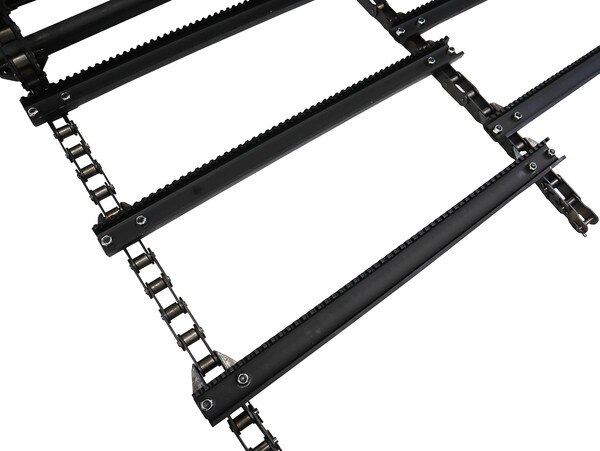

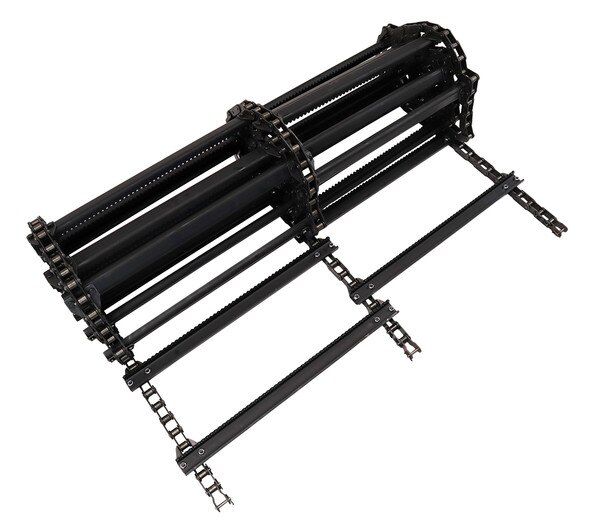

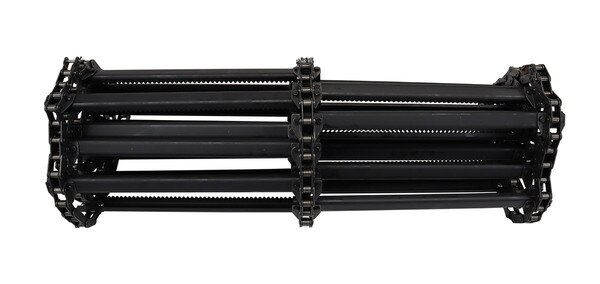

Harvestaire John Deere Aftermarket Replacement Feeder House Chain

Specifications:
30 Slats
H-Duty U Slats
CHAIN TYPE:  CA557
Chain Pattern; OUTSIDE: 6th/ INSIDE: 2/4th
3 Chain

NO. OF LINKS:  90
NO. OF SLATS:  30

A: Overall width of chain: 50 1/4" (1276mm)
B: Chain Centre to centre width: 23 3/4" (603mm)
C: Chain Centre to outer end of slat: 1 3/8" (35mm)

SLAT PROFILE:  T Bar / U Slat
SLAT LENGTH: 26 1/2" (673mm)

TOTAL CONN LINKS:  3
TOTAL OFFSET LINKS: 3
CUTOUT ON SLAT: 3 3/8" x 5/8"
LEFT AND RIGHT SLATS - same

View fitment section for more model details:
9660STS (BSN 720301), 9760STS (BSN 720301), 9860STS (BSN 720501)

Features:
Harvestaire imports the chain direct from Rosa Catene Italy, and it is ISO certified.

Chain Slats are 3D laser cut and precision bent using AS1594 steel.

Harvestaire Feeder House Chains are assembled to OEM specifications in our Perth Factory and go through a meticulous quality control process where each link is inspected and counted by our experienced team
