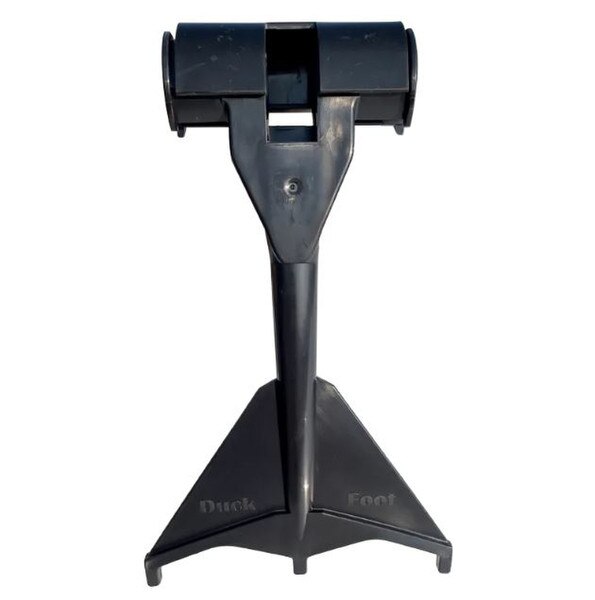

Duck Foot ® Paddle Tyne
This model fits Hart Carter reels

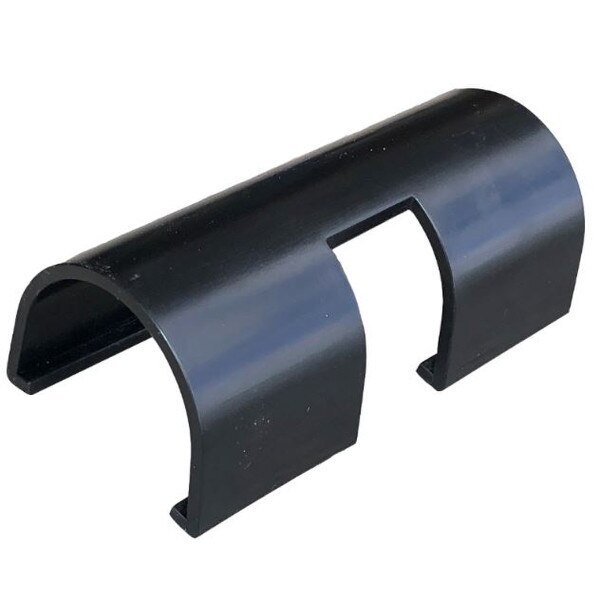

Sold as a pack of 10 = 10 x Duck Foot ® Paddle Tyne and 10 x Clip
Quantities Recommended: Kits available for 40FT/45FT
25FT Front - 140
30FT front - 170
35FT front - 200
40FT front - 230 (Refer Kit DF2HC-KIT-40)
45FT front - 260 (Refer Kit DF2HC-KIT-45)
50FT front - 290
Quantities are based on spacing a Duck Foot ® over every 2nd tyne
Feature and Benefits:

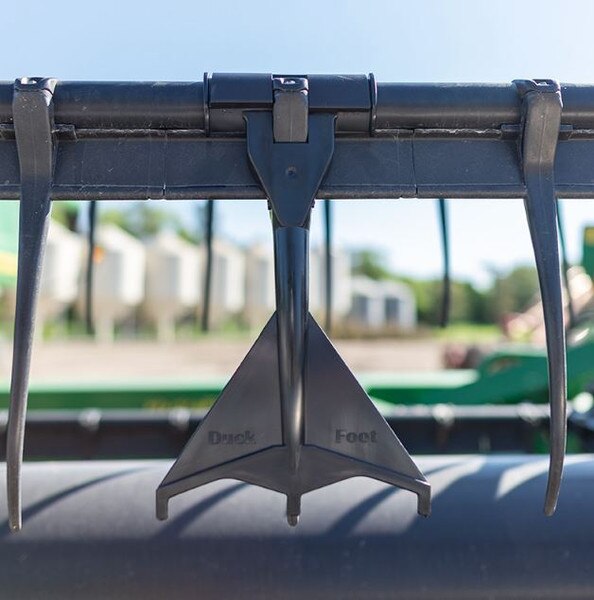

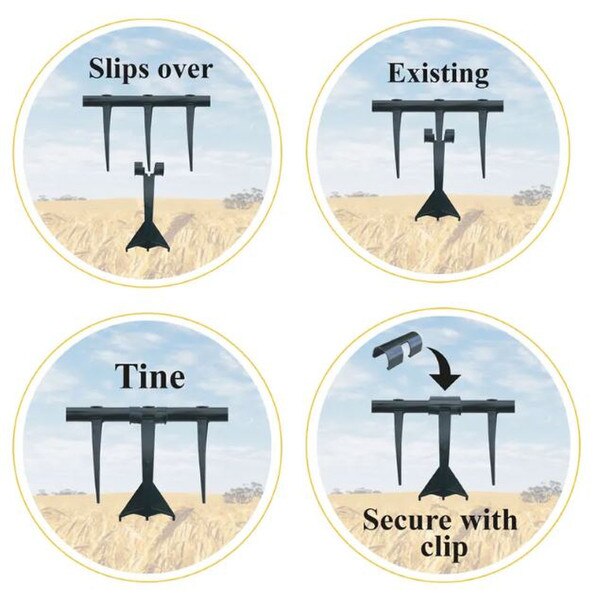

Duck Foot ® paddle tynes slide over the factory tynes and clip onto the reel with a unique clip system.
Fast and easy to install and remove.
Unique clip system secures the slip-over paddle tyne to the reel.
Placed over every second tine, off-setting on each consecutive batt.
Proven data to reduce header loss in Australian conditions.
Clears the cutter bar and feeds the crop more evenly for better threshing.
Suitable for Crops: Lentils, soybeans, chickpeas, all cereals, straight cut canola, sorghum, edible beans, flax, lupins, hay, peas and rice.
View fitment section for more details:
This model fits Hart Carter reels
Suits 6 Batt reels
6” tyne spacing, except for 1999 models and older
When 4” spacing, place Duck Foot ® Tyne over every 3rd tine
John Deere had a serial break in 2016, Duck Foot DF2HC model fits Serial #784,999 & lower. 900/600 [Rigid/Flex], 600 FD (serial#784,999 and below)
Recommended Reel pitch setting: Duck Foot™ recommends front reel tyne pitch to be set to a less aggressive setting.
Installation Instructions: Visit Duck Foot Parts Inc YouTube Channel (Pro Tip)
