Green Tech Ag S-Series Chaffer Frame Strengthening Kit
Length 312mm x 183mm x 74mm

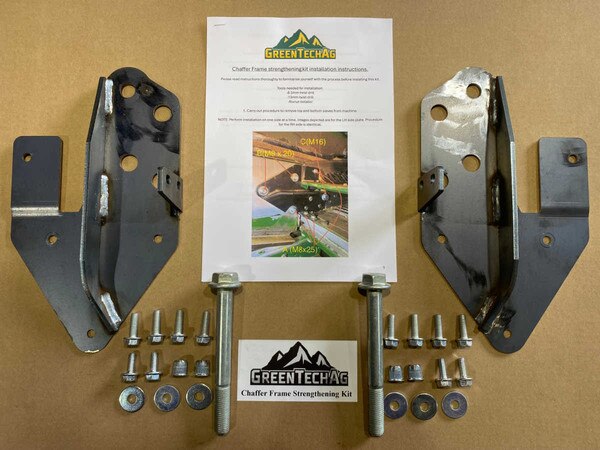

Kit includes the following:
2x strengthening plates (L & R)
1x bolt kit (Includes Hardware washers and rivnuts)
Installation instructions
Base plate is made from 3mm MS plate with 5mm stiffener bar and support mount
View fitment section for more details:
Kit suits all European S-series from year model 2017 onward to current year model.
S660, S670, S680, S690 with SN range from 1Z0S6**105000 - 109999
ALL S700 series models of all SN ranges
Benefits of Installation:

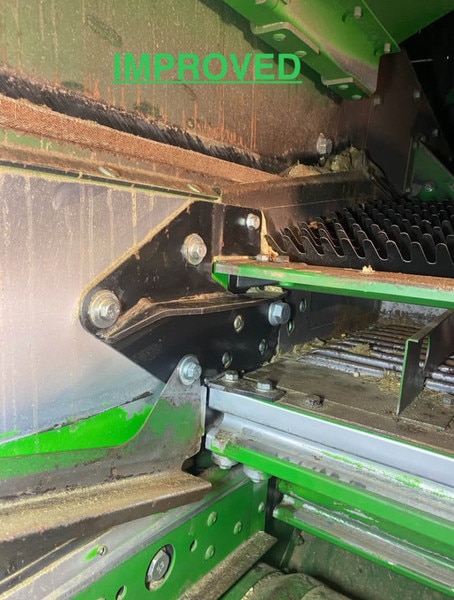

Improve the reliability, maintain uptime and reduce big $ repairs this up and coming harvest by installing a shoe frame strengthening kit.
Cracking shoe frames can lead to downtime and repair costs exceeding $15k for frame alone without other costly parts that are damaged post failure plus labour involved.
Green Tach Ag Specialise in John Deere header repairs and have come up with a cost effective solution for this that has been tested on numerous Australian headers over harvest.
Kit suits all European S-series from year model 2017 onward to current year model.

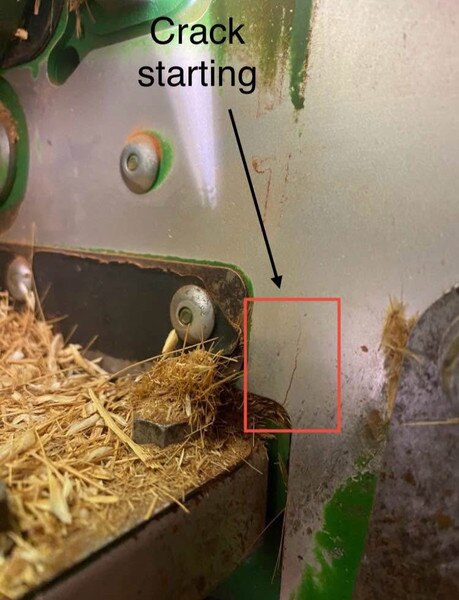

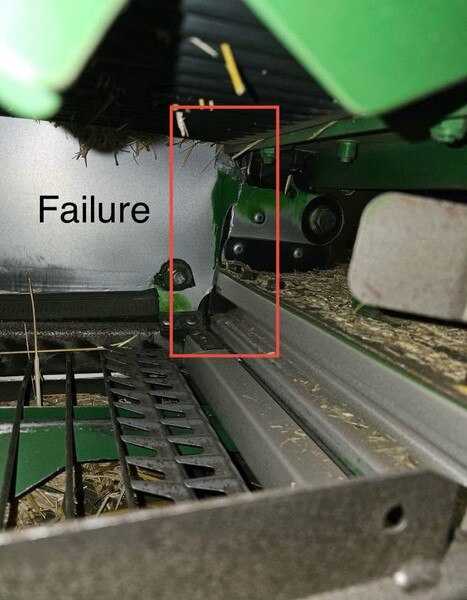

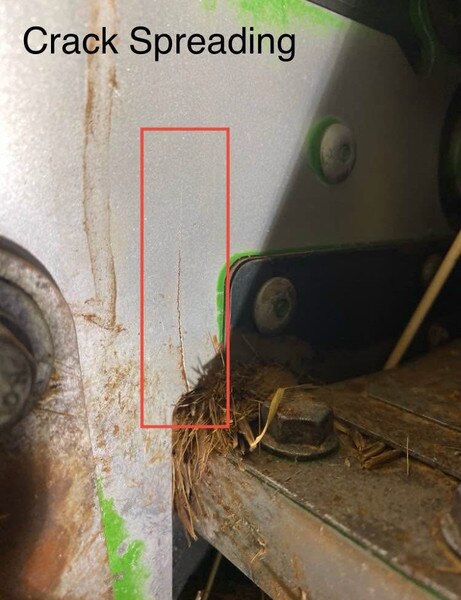

Refer to images which show how cracks start and how they end up.
Preventative maintenance is always better than reactive maintenance. Easy to install in under an hour.
Green Tech Ag has sold 70+ kits Australia wide.
