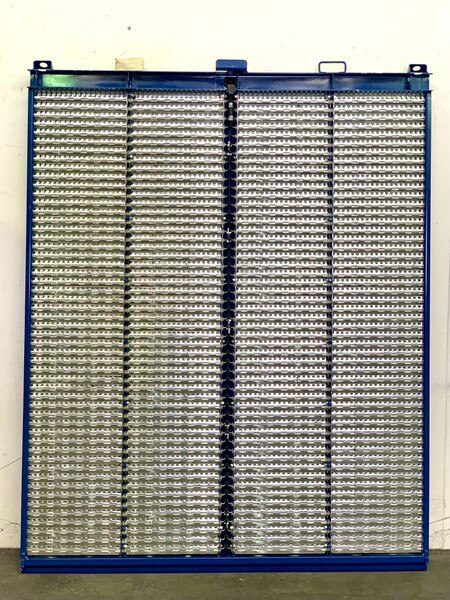

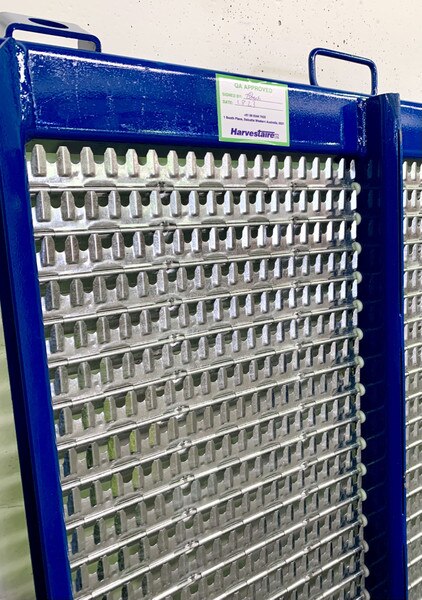

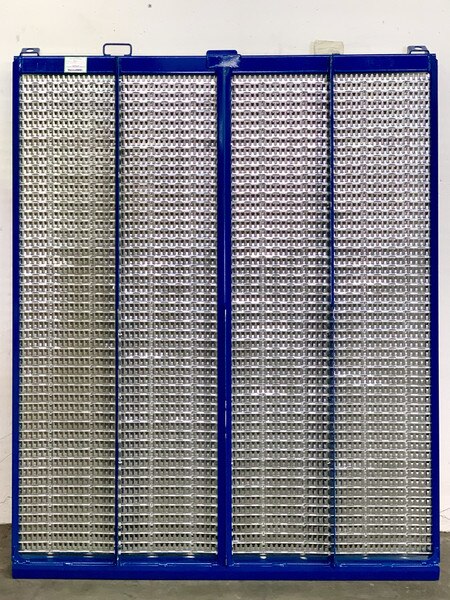

Bottom Sieve Chaffer

Std/Air Foil Louvre

USA Model

Australian Made by Harvestaire

1 1/8" Wire spacing - Short Finger
63 7/8" (1624mm) Length
51 5/8" (1310mm) Width

View fitment section for more details:
(S650 W/WIDE 765000-785000)
(S660 EURO MY14 - 094131)
(S660 MY15 095678)
(S660 EURO 1000000-104999)
(S660 W/WIDE 745100-765171; 765172-785000)
(S670 EURO 1000000-104999)
(S670 W/WIDE 745100-765252; 765253-785000)
(S680 EURO 1000000-104999)
(S680 W/WIDE 745100-766006; 766007-785000)
(S690 EURO 1000000-104999)
(S690 W/WIDE 745100-765249; 765250-785000)

Features:
Harvestaire standard louvre top sieves perform the same as originals, but have nylon bushes so they don’t wear out.

Harvestaire AirFoil bottom sieves are virtually impossible to overload as the louvres do not deflect or close up under a heavy stream of grain as is frequently the case with traditional bottom sieves, particularly when they are worn. This makes normal sieves very difficult to adjust. It’s common to find the normal sieve either putting too much good grain in the repeats or letting too much rubbish in the sample

Benefits:

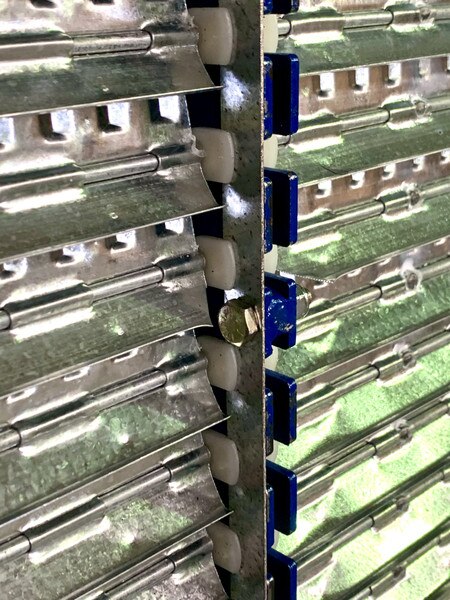

Nylon anti-wear bushes on all wires increase the life of the sieve by reducing friction, wear and breakage.

Wires and louvres can be replaced.

Strong, fully galvanised louvre design prevents distortion caused by the weight of the grain.

Please Note: It is recommended that you replace all your Hanger Bushes when installing a new sieve to increase the life of your purchase
